2012 SOTOGRANDE SAILING CLUB, Cádiz

Download development project

Texts

A LITTLE GREAT WORK

This is all about building a logical, simple and economical piece; a storehouse to replace the shed which currently houses the sails of the Sotogrande Sailing Club’s yachts. We would like to demonstrate once again how architecture is capable, despite a limited budget, of devising an exquisite piece.

Platform
As an initial measure we establish a flat surface supported by a simple metal structure of white painted galvanized steel. Onto it, as if it were a frame, we fix self-supporting alveolar concrete panels. By way of access, three stairways of galvanized sheet metal painted white.

Covering and closure
Onto that platform and linked to the basic structure we erect a light elementary structure of galvanized metal tubes. The modules making up this structure are 2.50 x 5.00 x 2.50 m. The roof and walls are finished off with pieces of white cellular polycarbonate, either translucent or opaque, as required.

Gallery
The front gallery covered with translucent polycarbonate will have both sun and shade. A retractable closure of glass laminated for security is envisaged involving minimal carpentry.

Conclusion
Thus with a modest budget we hope to create a very elementary architectural work that will be a thing of beauty in terms of its logic, proportions and scale. We would like to build a little great work.

Technical data

Architect: Alberto Campo Baeza. Location: Sotogrande, Cádiz, Spain. Client: Sotogrande Sailing Club. Competition: 2012. Area: 150sqm.

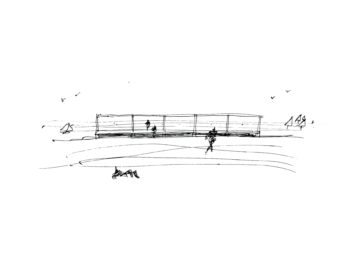

Sketches

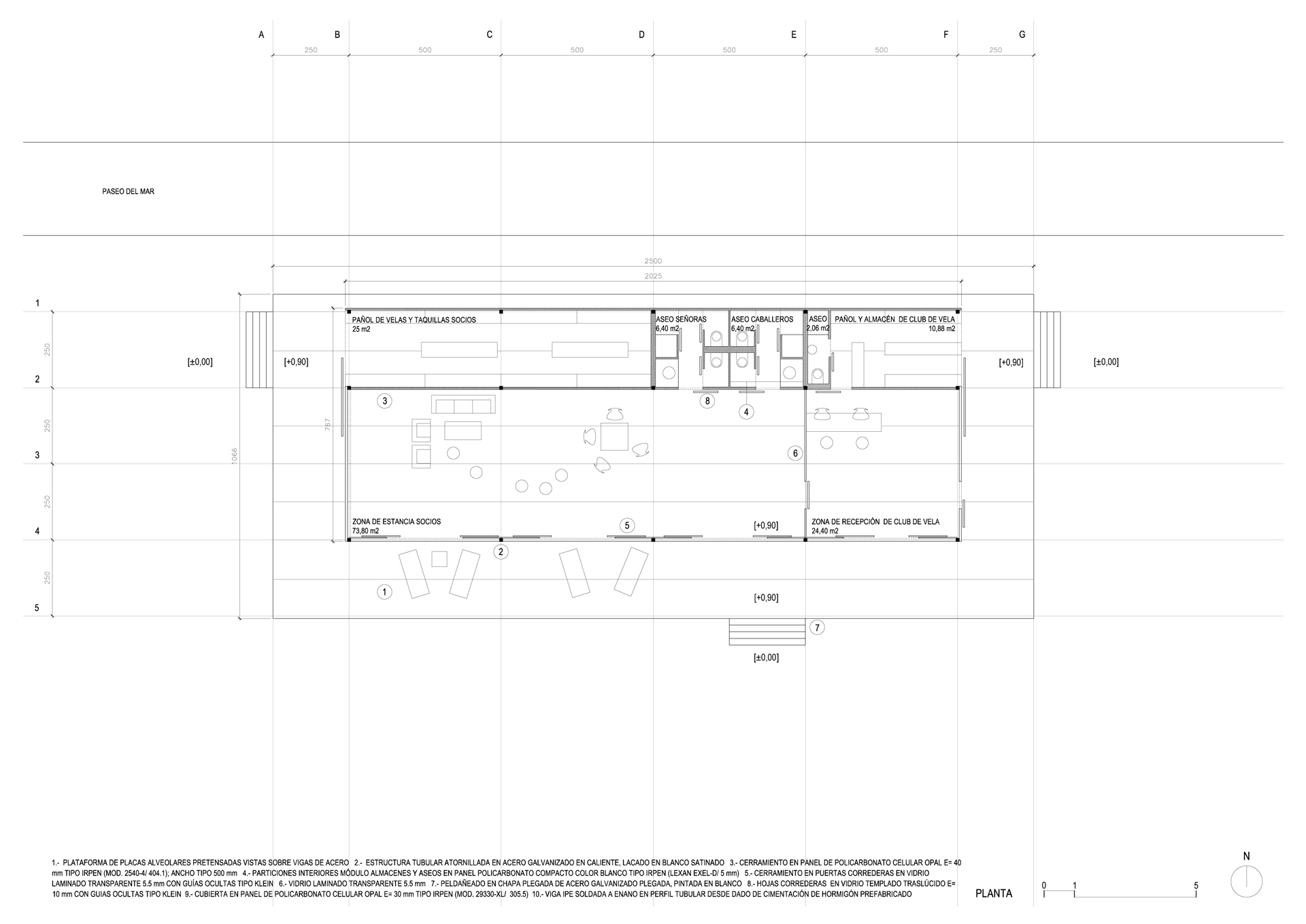

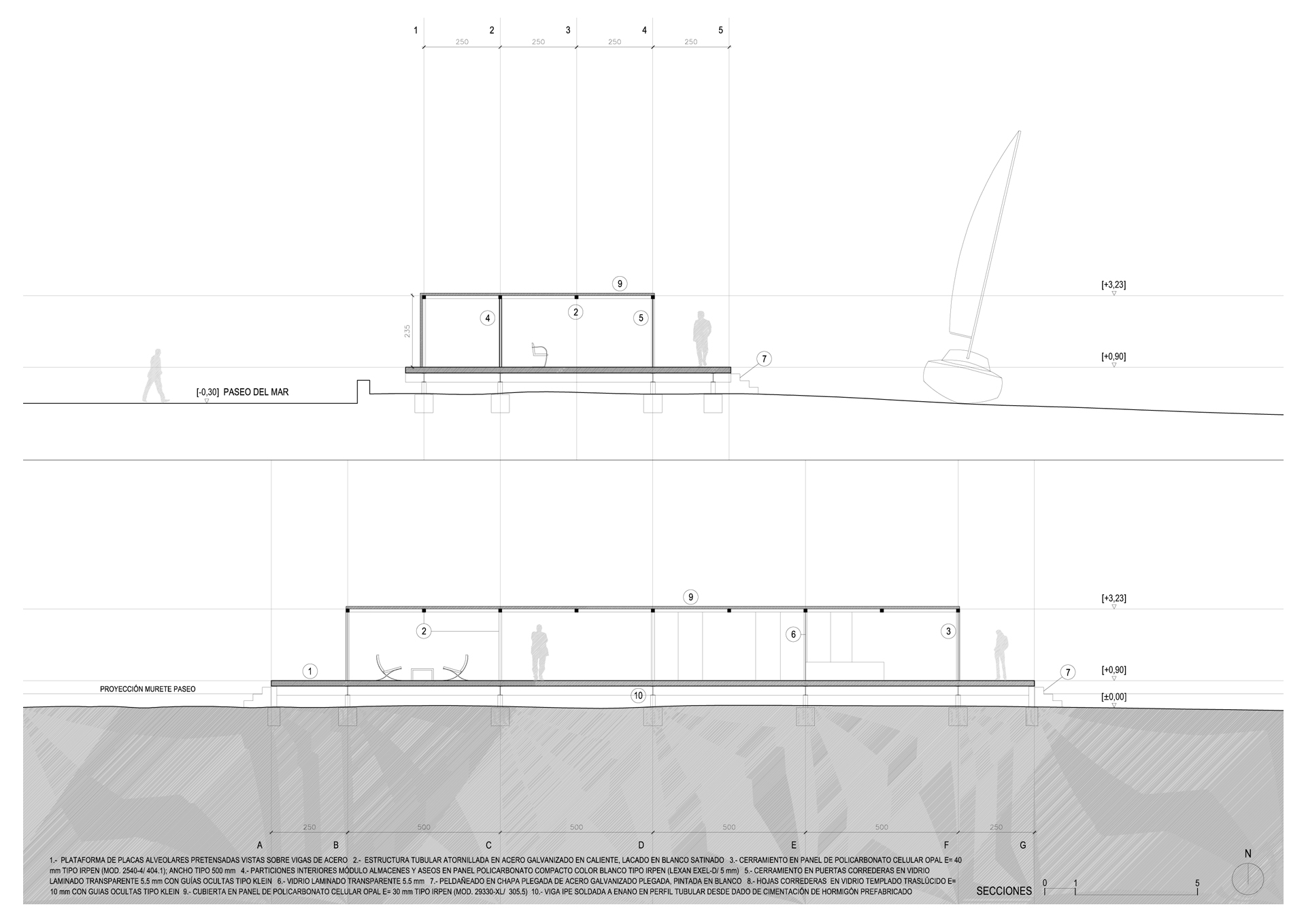

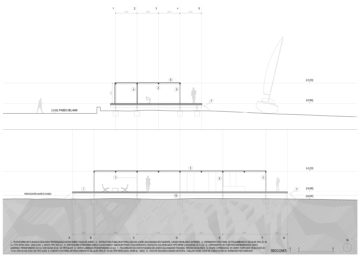

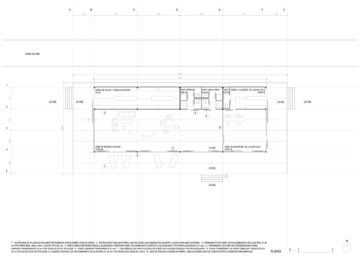

Plans

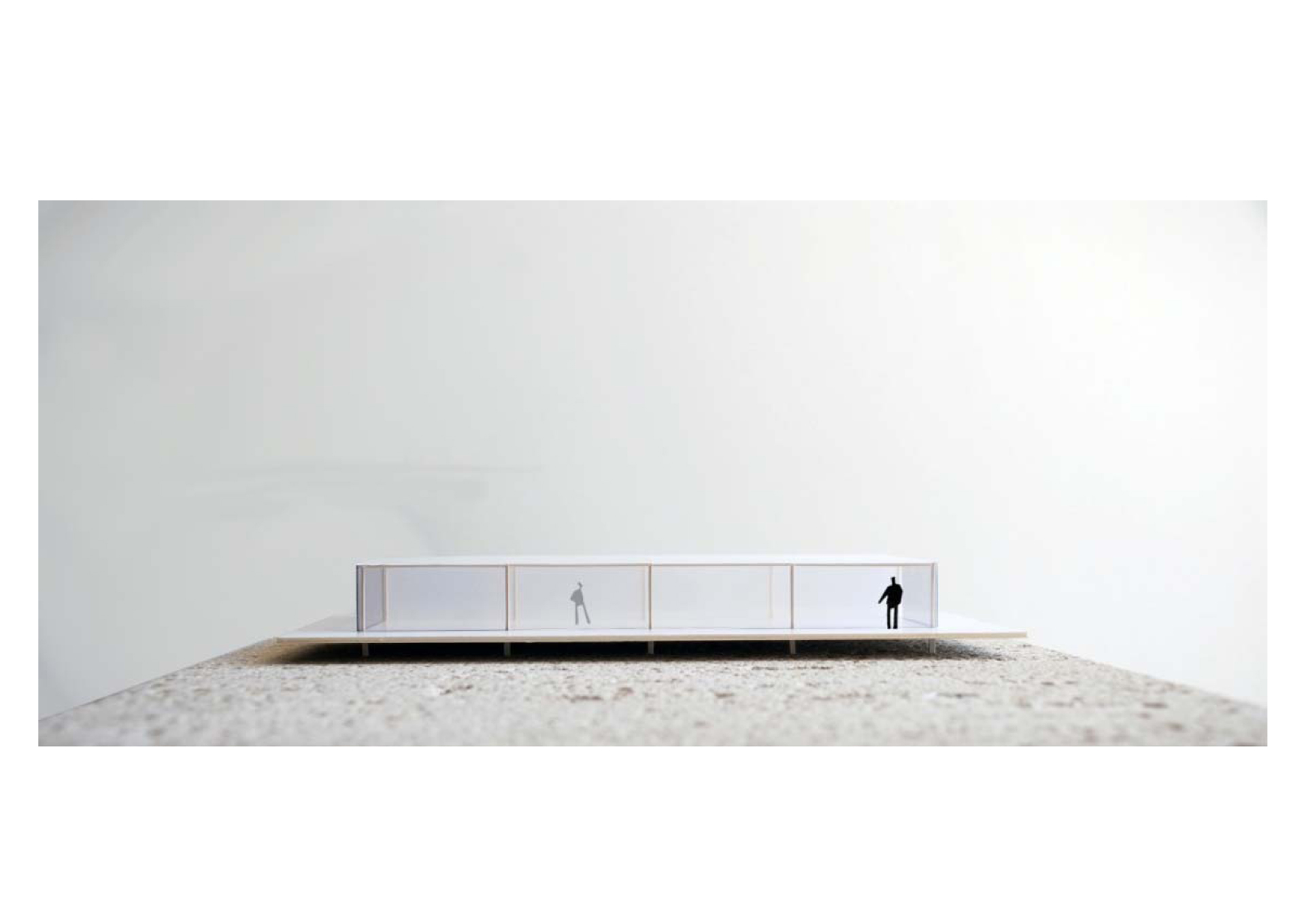

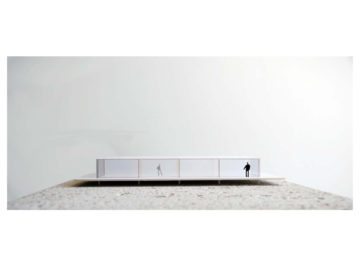

Models

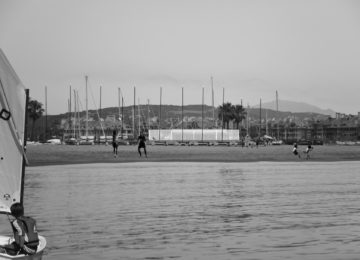

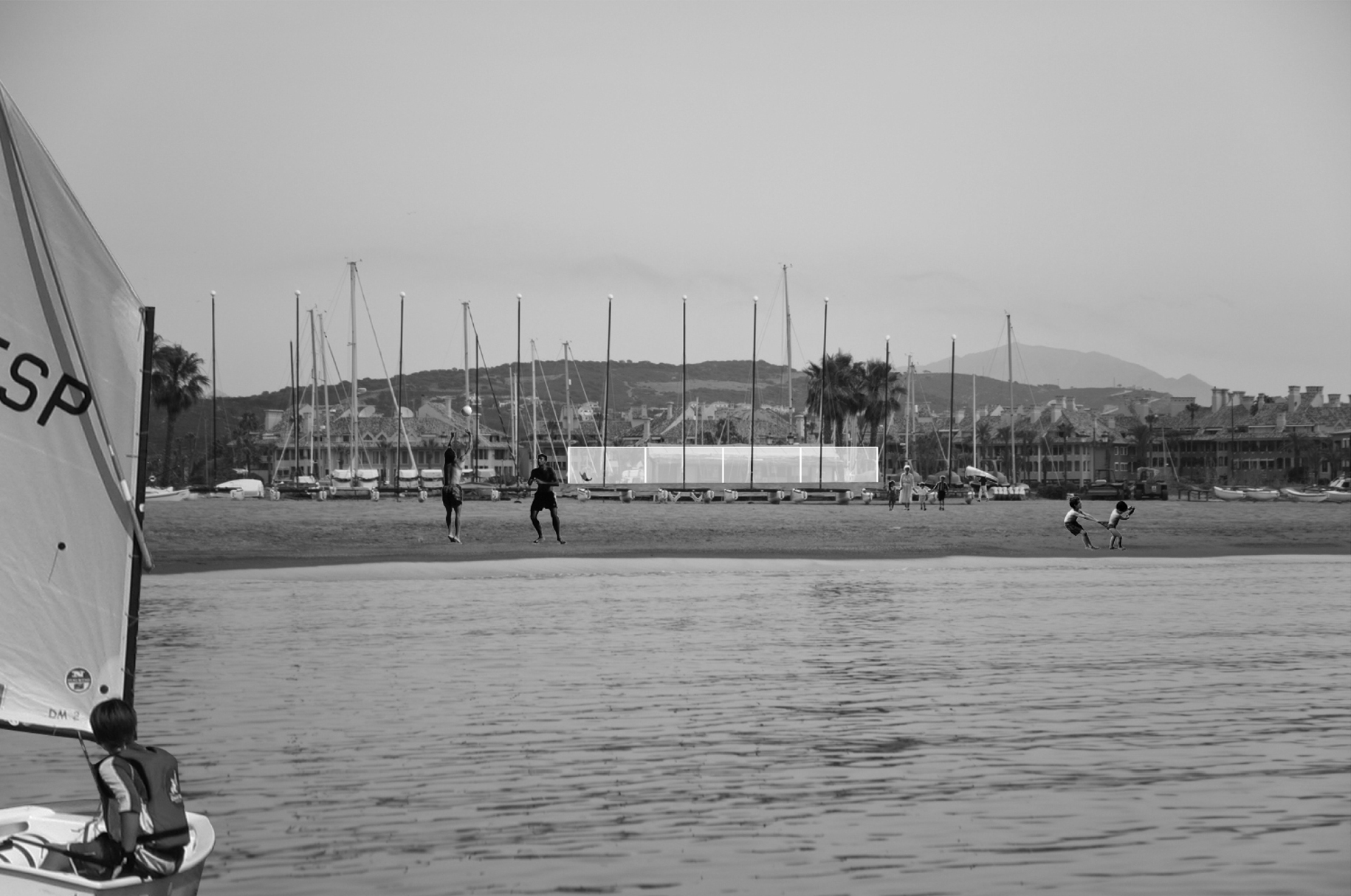

Images
